Single Layer High Speed Toilet Tissue Paper Towel Roll Wrapping Machine

Single layer high speed Toilet Tissue Paper Towel Roll Wrapping Machine

Description:

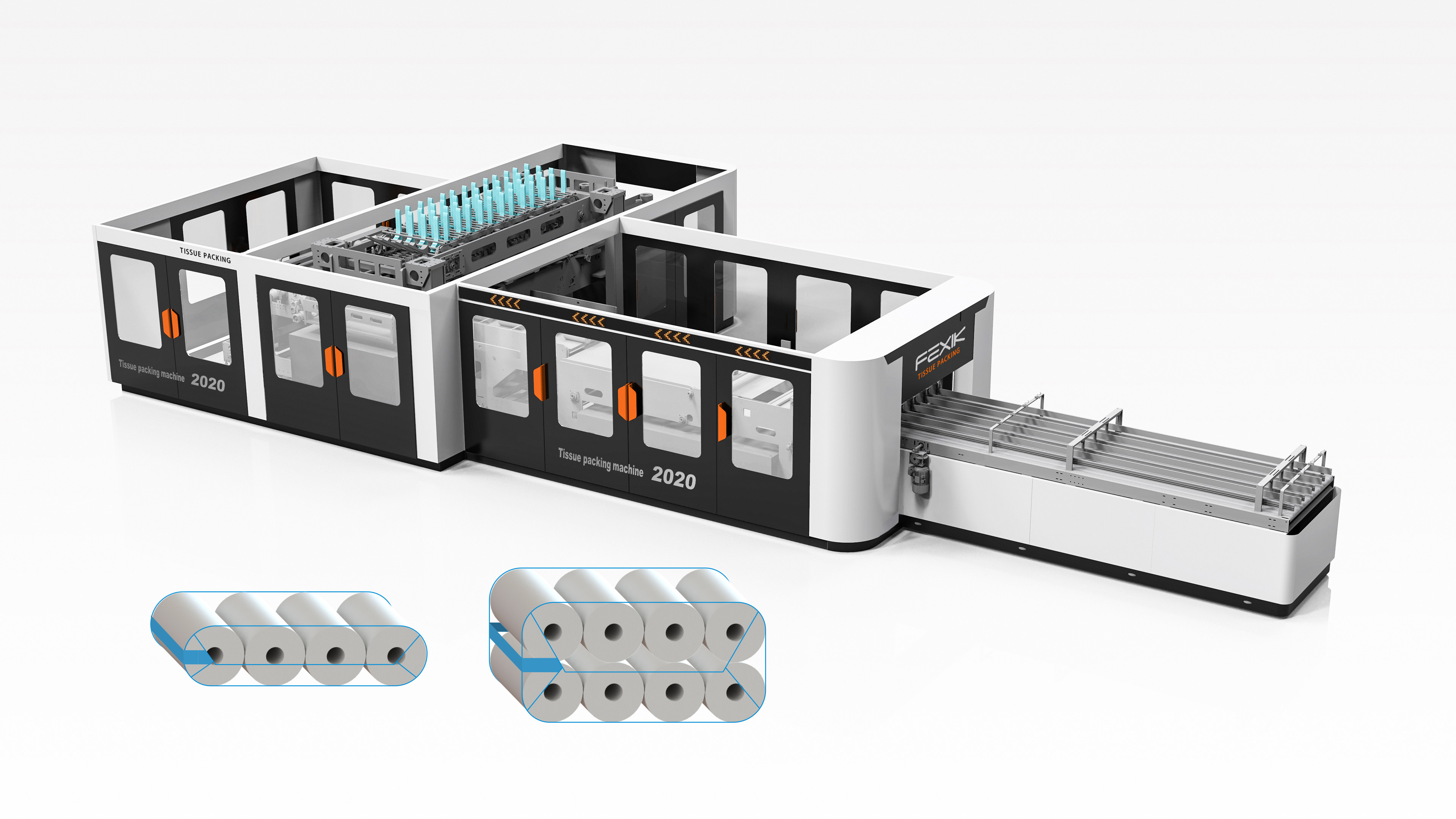

The wrapper F-T6 is our latest design and most advanced machine for packaging toilet tissue and kitchen towel rolls with a wide range of wrapping configuration. It is a new generation wrapper with high production speed.

Working principle:

The rolls are coming by three channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer into in-feed section, where they are transported by group of carbon bars mounted on trimming belts.The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders.

Main Features and Advantages

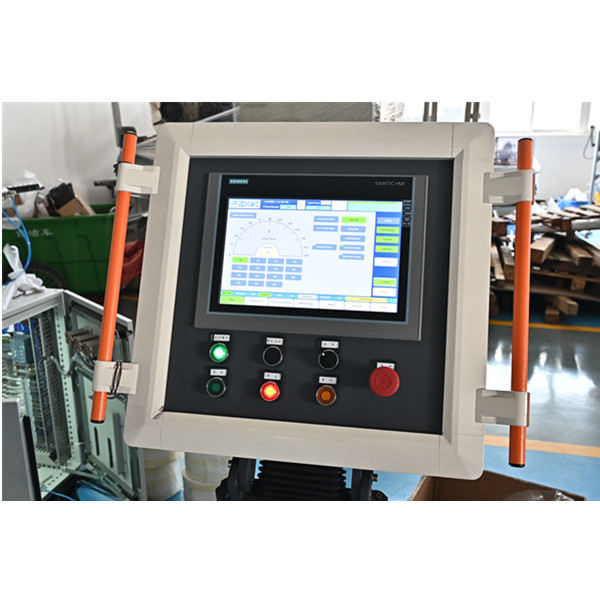

1. It adopts full servo technology, touch screen and PLC motion control system.Parameters can be set conveniently and quickly, Machine Automatically completes produce from the automatic feeding,arranging, wrapping and sealing.Running in a high speed.
2. This machine is designed to have various specifications format changeover between toilet roll and kitchen towel, can meet the different requirements of customer’s market.
3. Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.
4. This machine is used printed film roll or paper to pack the tissue,it save the cost of plastic bag.

Plastic finger design

Unlike conventional wrappers, each pair of trolleys stops only once, to receive the rolls and

the rest of period is constantly moving with minimal required speed in area of side folders. This is

something which significantly improve folding quality.

Bottom sealer is in fixed position and work in rotary mode. It synchronizes comprehensive speed

with trolley speed in sealing area . This allows longer and more stable contact between the bottom

sealer and the sealing section of the pack, which results in high sealing quality.

Packing & Delivery

Packaging:

• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.

Delivery terms:
• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 60days after received the down-payment.
