HHT 5 Lanes Toilet Paper Wrapper 90bags/Min For BRT Toilet Paper Wrapper

Name: HHT 5 Lanes Toilet Paper Wrapper 90bagsMin For BRT Toilet Paper Wrapper
Brand: FEXIK
Price: 200 USD

Buy cheap HHT 5 Lanes Toilet Paper Wrapper 90bags/Min For BRT Toilet Paper Wrapper product

Brand Name : FEXIK

Model Number : F-T8

Certification : CE ISO

Place of Origin : Liuzhou ,China

MOQ : 1 SET

Price : USD200,000-250,000 Per Set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 15 Sets Per Month

Delivery Time : 45-90 work days

Packaging Details : Packed in wooden cases

After-sales Service Provided : Engineers available to service machinery overseas

Usage : toilet paper nd kitchen towel packaging machine

Packing speed : 30-150 bags/min

The range of packing sizes : Max: L600mm*W480mm*H300mm

Configuration : Toilet tissue roll: 2-60 rolls; Kitchen towel :2-24 rolls

Mini air pressure requirment : 0.5Mpa

Marketing Type : New Product 2020

Voltage : 380V 50HZ

Contact Now

Double Layer HHT Kitchen Towel Toilet Rolls Wrapper 90bags/Min

1.Production Description

1-1 .The double-layer wrapper provides a variety of packaging configurations for BRT and HHT. Fully automatic high speed multi-pack film wrapper for bath tissue and towel rolls,can have full range production in 1,2 layers.
 1-2 This wrapper is easy to use, it is fully servo driven, controlled by the most advanced motion controller SIMOTION D which allows extremely reliable production process. it reaches output production speed over 160 packs/min to give you the leading edge for quality packs at high speed.
 1-3 The use of motor adjustment is convenient and quick, providing an extremely easy, quick changeover time.
 1-4  The wrapper F-T8 is a packaging machine for hygienic and kitchen rolls very economical and efficient. It packs from 4 to 60 rolls, and also 1 and 20 kitchen towels.
 	 			item 			value
 			Marketing Type 			New Product 2020
 			The range of packing sizes 			Max: L600mm*W480mm*H300mm
 			Certification 			CE,ISO9001
 			Voltage 			380V/50Hz
 			Color 			white or custom
 			Speed 			up to 150 packs/min
 			Infeed 			5 lanes
 			Layers 			1 or 2

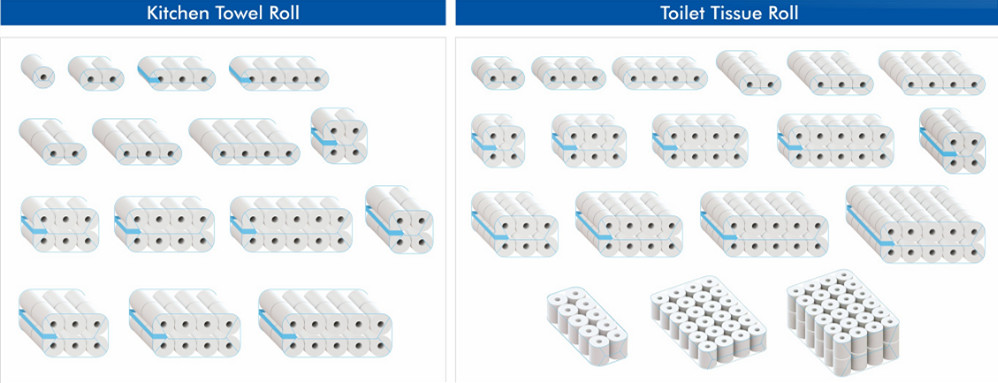

 2.Package Specification

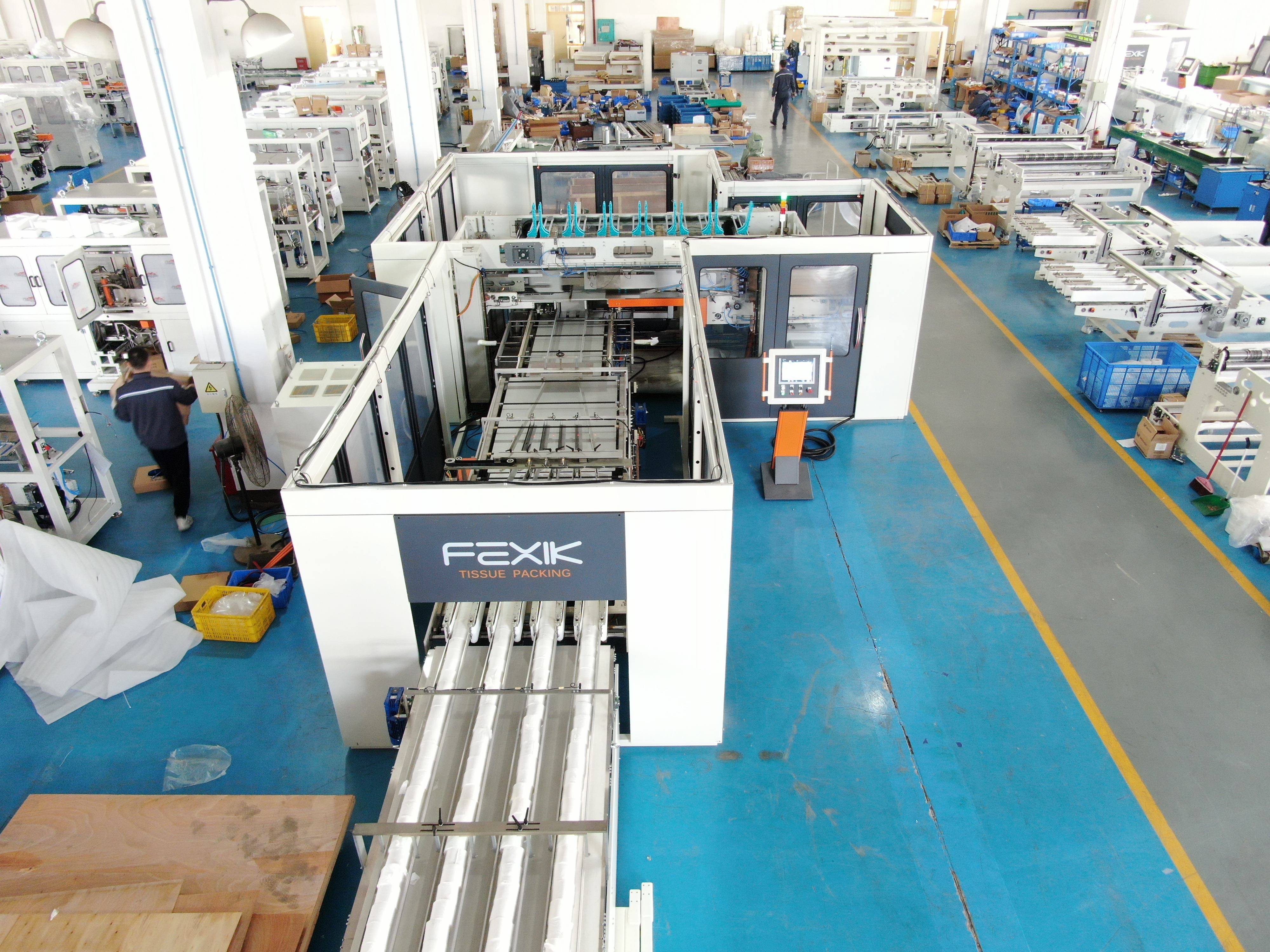

 3.Factory Show

HHT 5 Lanes Toilet Paper Wrapper 90bags/Min For BRT Toilet Paper Wrapper

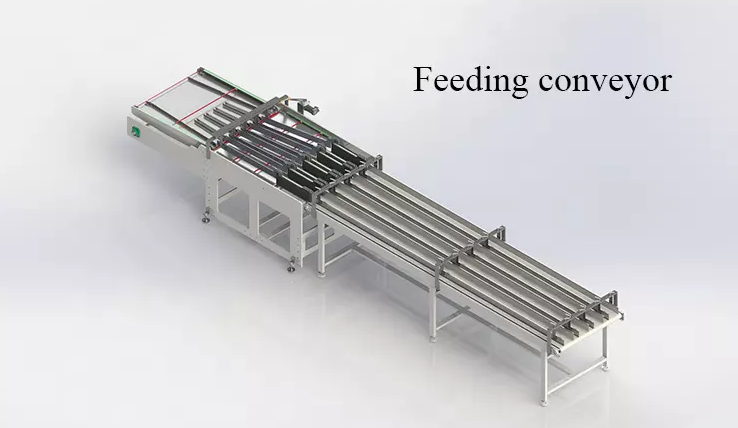

4.Feeding Conveyor
 Four-channel motorized belt conveyor, 4.5 meters long, controlled by inverter, for rolls accumulation. The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.

 Toilet Paper and Kitchen Towel Production Line Non Stop Production Line

Product Tags:

5 Lanes Toilet Paper Wrapper

HHT Toilet Paper Wrapper

BRT Kitchen Towel Paper Wrapper

HHT 5 Lanes Toilet Paper Wrapper 90bags/Min For BRT Toilet Paper Wrapper Images
