Characteristics
| Items | Datas | Items | Datas |
| Infeed | 3 lanes | Max Mechanical Speed | 200 packs/min |
| Layers | 1 | Average Format Changeover Time | 5-15 min |
| Roll Diameter | 90-250mm(3.5-9.8'') | PE Thickness/LDPE | 25-50 microns |
| Roll Length | 90-300mm(3.5-11.8'') | Wrapping Material | PE/LDPE paper(option) |
| Pack Width | 90-400mm(3.5-15.7'') | Installed Power | 35 kw |
| Pack Length | 90-300mm(3.5-13'') | Real Power Consumption | 18 kw |
| Pack Height | 90-250(300)mm(3.5-9.8'')(11.8'') | Air Consumption | <500 L/min |
| ReelDiameter | up to 500 mm(19.7 '') | Machine Weight | 5000 kg |
Product Overview

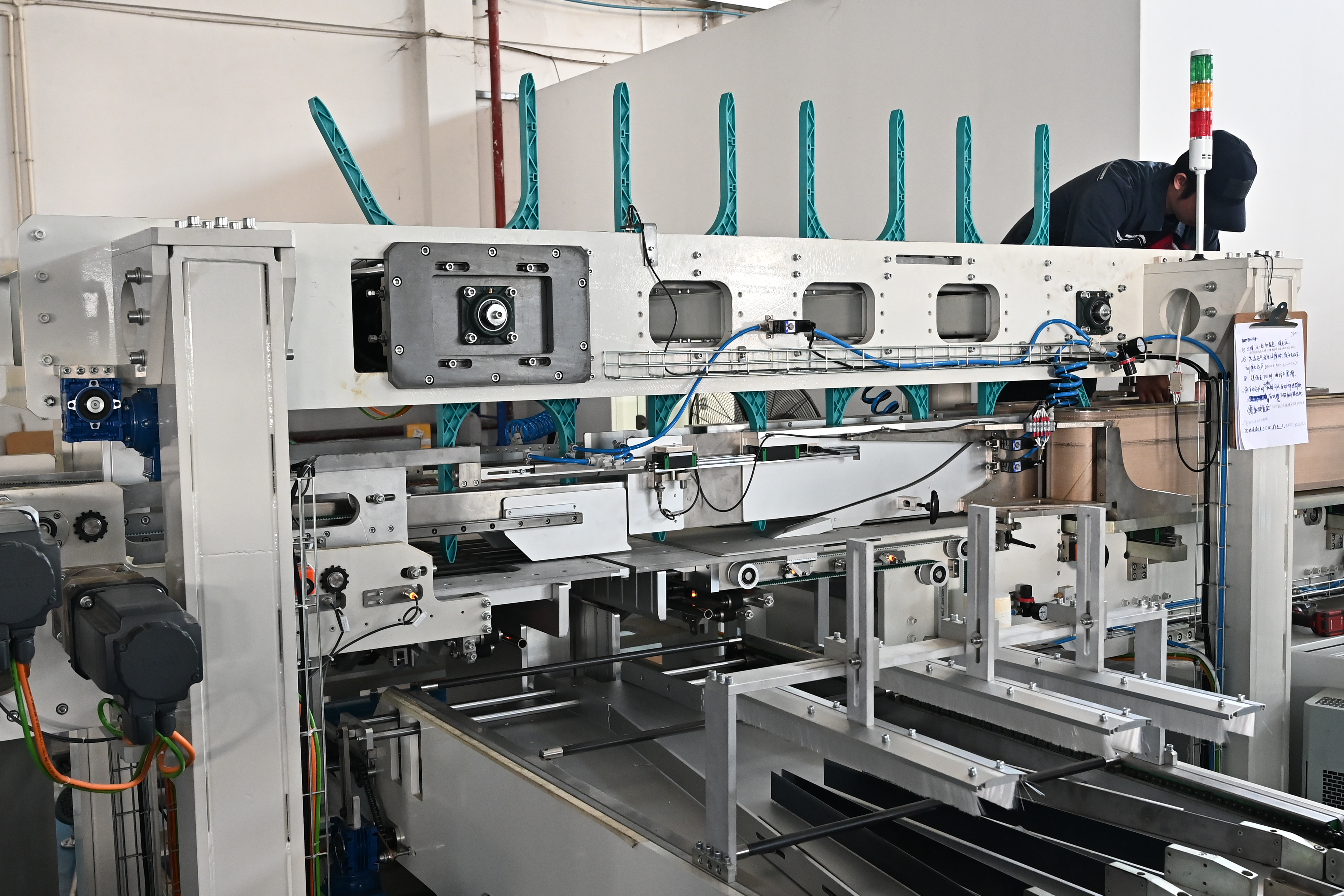

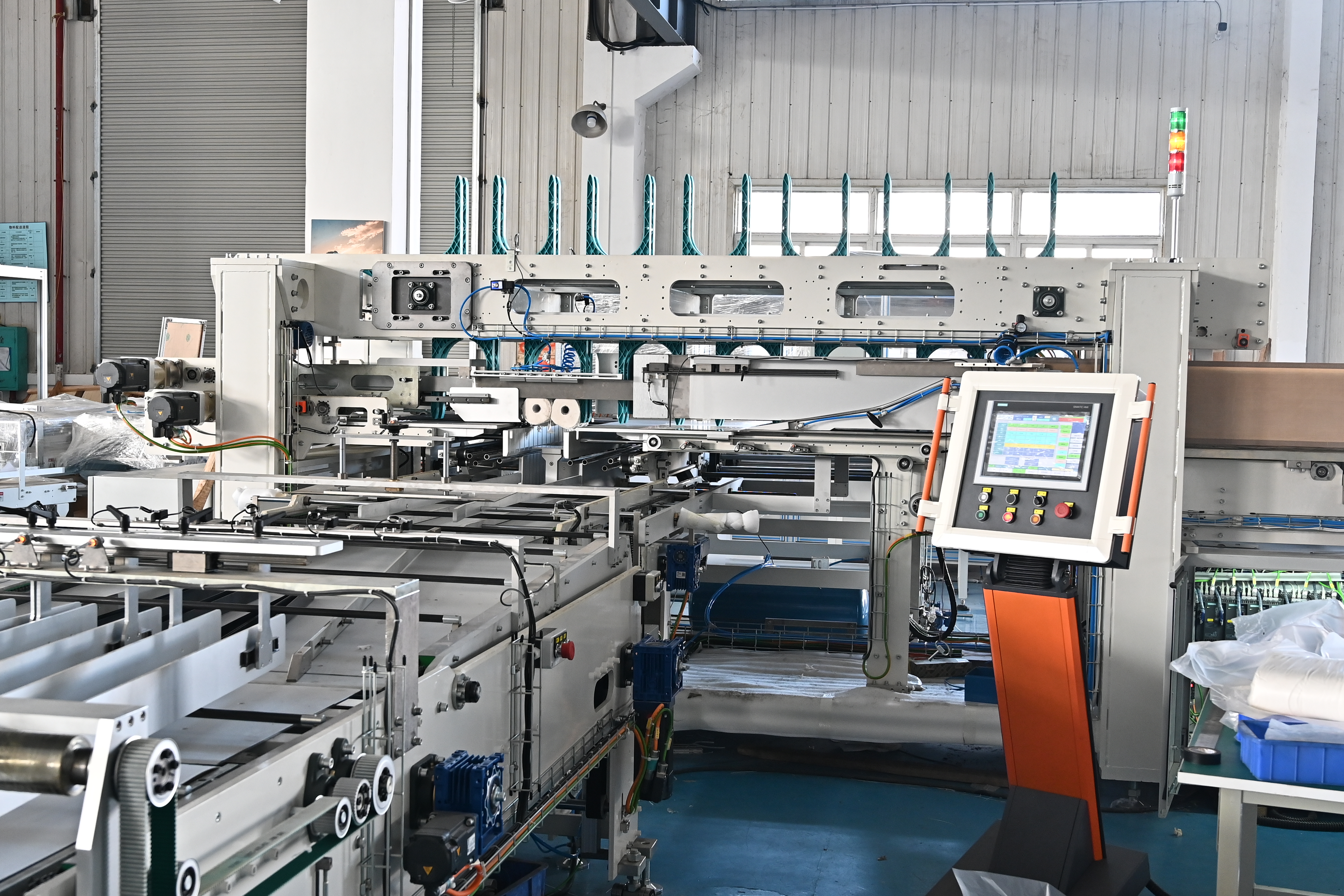

2020 Hot Product Full Automatic F-T6 Toilet Paper and Kitchen Towel Roll Wrapper

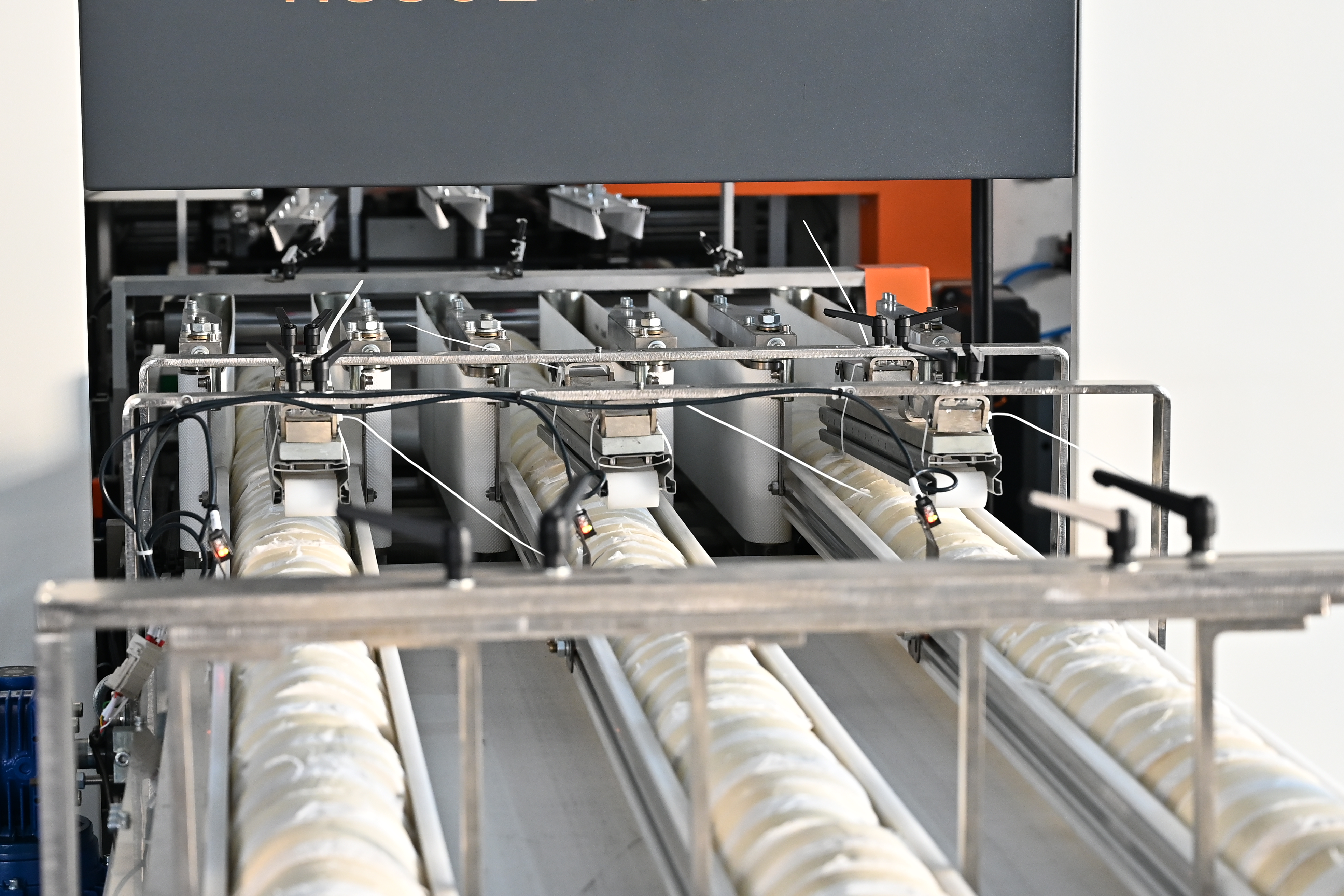

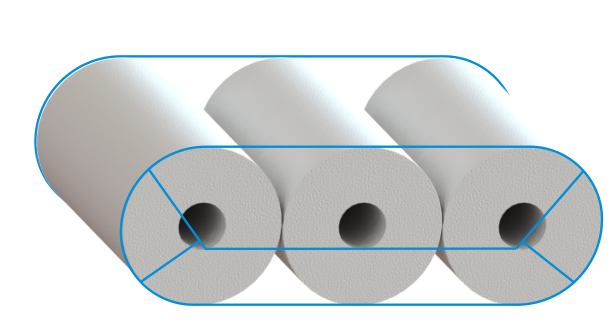

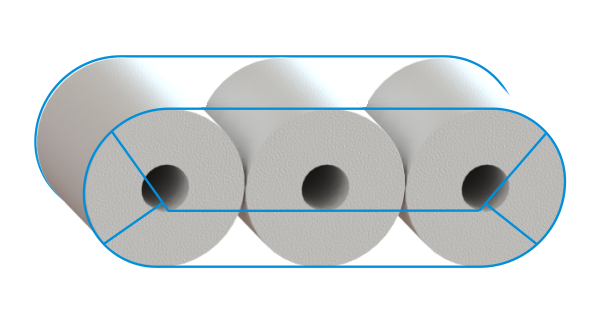

This machine has the single-layer, which offers a wide range of pack format for both toilet roll and kitchen towel. This wrapper is easy to operate, it is fully servo driven, controlled by the most advanced motion controller Siemens SIMOTION D which allows extremely reliable production process. It reaches output production speed over 200 packs/min to give you the leading edge for quality packs at high speed. It can be upgraded to 3 lanes infeed system, achieve 1, 2, 3, 4, 6, 9 rolls configuration for toilet roll, 1, 2, 3 rolls for kitchen towel. This wrapper can have perfect packs even running in high speed, and the use of motor adjustment is convenient and quick.
Configurations and Shipping
Configurations
Shipping Way
Certifications
Exhibitions
We are so glad to have the opportunities to showcase our toilet tissue paper roll and kitchen towel roll packaging machine and other household paper production line machines and technology to abroad audience of tissue industry professionals from all over the world. For these years, we have been to Dubai, Egypt, Milan, Istanbul and so on. We still moving forward, searching for a broader market and long-term cooperation with customers from all over the world.

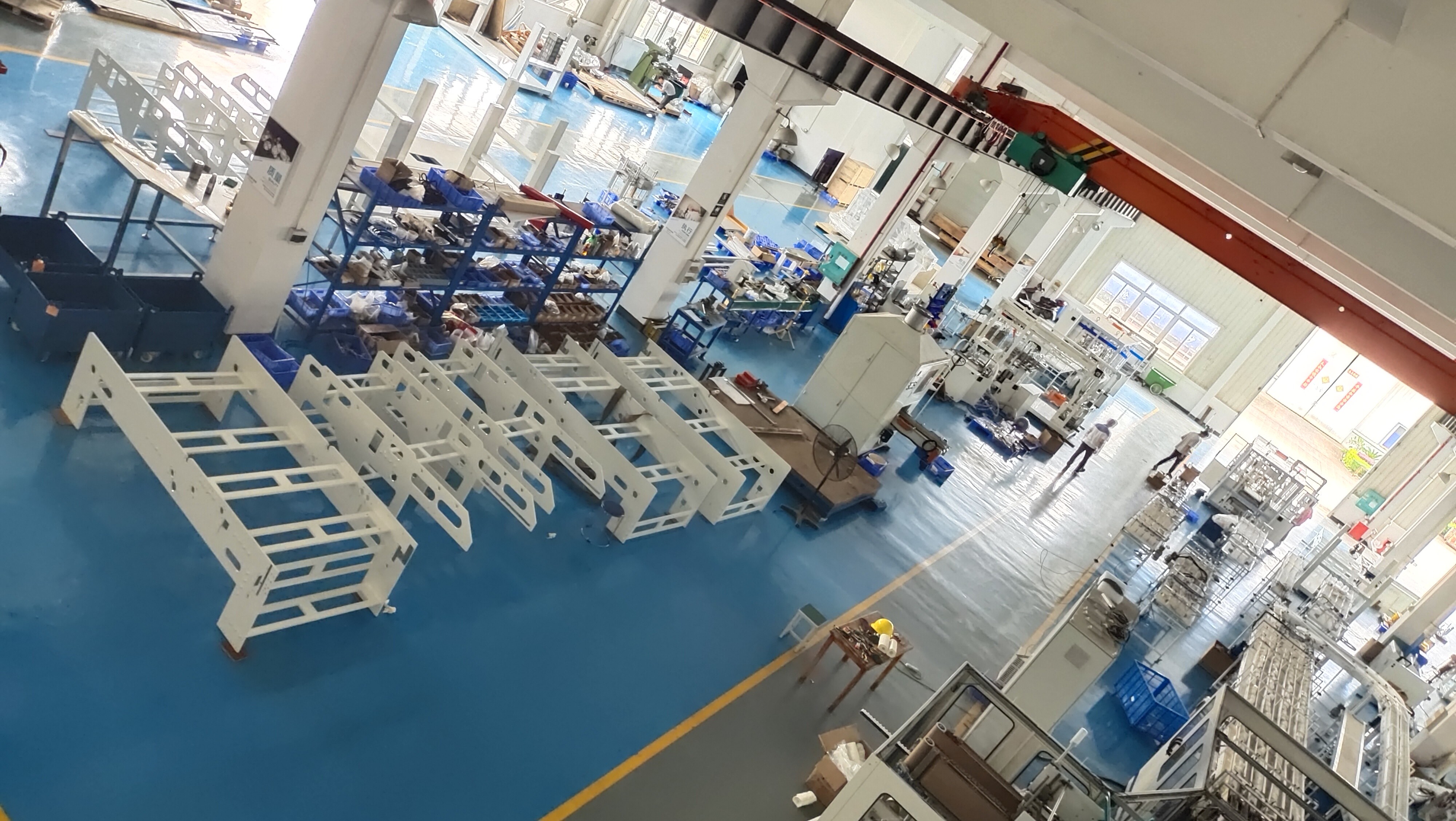

Company Profile
LIUZHOU ZODE MACHINERY SCI-TECH CO.,LTD. focus on research and product of packaging machinery for many years, Including tissue machinery ,tissue packaging machine,diapers packaging machinery.We do our best to meet the changed-market and client specific needs.Good service and advanced technology have been widely recognized around the world, besides attracted the attention of many overseas customers.
FAQ
Q1:Are you trading company or manufacturer?
A1:We are factory.
Q2: How long is your delivery time?
A2: 30-60 days after received a deposit, it is according to quantity.
Q3: Do you provide design?
A3: We can provide solutions to customers from products choosing, designing,installing and training.
Q4: What is your terms of payment?
A4: 30% T/T in advance, balance before shipment.
Q5: How much area the whole production line needs?
A5: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
Q6: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A6: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60HZ, 3ph 415V 60HZ, 3ph 220V 60HZ and so on.
